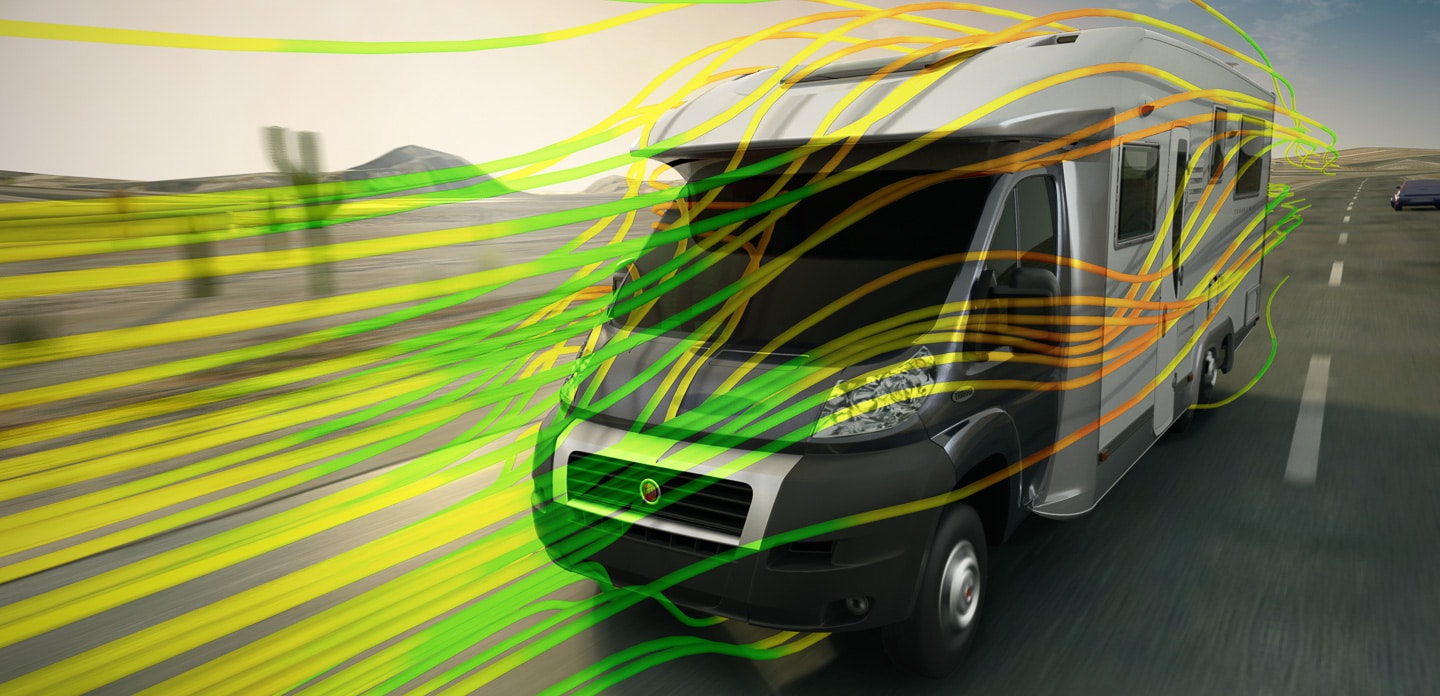

SOLIDWORKS Flow Simulation

Why Choose SOLIDWORKS Flow Simulation?

With SOLIDWORKS Flow Simulation, you have a software solution that:

• • • Takes into account user requests (the impact of the flow of a liquid or gas can be determined more quickly);

• • • Can do without advanced CFD expertise;

• • Offers additional modules to further analyze dynamics fluids (radiation and thermal comfort, simulation of cooling);

• • Simulates liquid and gas flows in real conditions;

• • • Anticipates and reduces the risk of heating;

• • • Runs hypothetical scenarios and quickly analyzes the effects of fluid flows, heat transfer, and forces applied to submerged or surrounding components;

• • • Imports the conditions of a defined model (material properties, thermal power, etc.) to reuse it on other projects and create a library of models;

• • • Compares the results of different configurations using a comparison.

To go further in the study of fluid dynamics:

Two modules are offered:

SOLIDWORKS Flow Simulation Features

SOLIDWORKS Flow Simulation includes the following features:

• • • Computational Fluid Dynamics
    • Fluid Flow Analysis
    • Thermal Comfort Factors
    • Thermal Management of Electronic Devices
    • Simulation Visualization
    • Thermal Flow Analysis

HVAC Module Features

• • • HVAC Analysis
    • Fluid Flow Analysis
    • Thermal Comfort Factors

Electronic Cooling Module Features

• • • Specialized Electronic Cooling Analysis
    • Joule Effect Analysis
